A Step-Change In Feed Nozzle Design
In our webcast, A step change in feed nozzle design, experts from Shell Catalysts & Technologies described how a step-change in feed nozzle design is leading to low-cost FCC unit margin improvement opportunities. On this page, we capture questions asked during the webcast and our experts’ responses to provide insights for anyone seeking a low-cost opportunity to process cheaper, lower-quality feeds such as residues and difficult-to-crack materials; increase yields by reducing dry-gas yield, increasing conversion and shifting the yield structure; and maximise operating severity by unlocking compressor and heat balance constraints.
General
What is the difference between increasing severity and conversion?
What is the difference between increasing severity and conversion?
Severity and conversion are related and, for the same feedstock and catalyst, go in the same direction (i.e., higher severity produces higher conversion). The difference between the two is what is being measured.
Severity is related to the catalyst circulation rate (or catalyst/oil ratio), whereas conversion is the percentage of feed made into products (i.e., 100% – LCO% – slurry%).
Conversion is mathematically related to severity through a negative exponential function, meaning that as the severity increases, the conversion increases similarly to a point, then levels off.
What is the history of feed nozzle design? What are the key functional aims of the nozzles and the design trade-offs?
What is the history of feed nozzle design? What are the key functional aims of the nozzles and the design trade-offs?
Shell has a history of FCC feed nozzle design going back decades, with both side-entry feed nozzles (SEFN) and bottom-entry feed nozzles (BEFN). Both SEFNs and BEFNs are designed to atomise the feed, with steam, into small droplets that contact the catalyst and convert the feed to valuable products.
SEFNs have a design that can achieve better atomisation than BEFNs, plus SEFNs are arranged circumferentially around the riser and can have better spray coverage of the catalyst than BEFNs.
However, BEFNs are located in the liftpot so, for short risers, they make more riser length and volume available for catalytic reacts, since the spray is lower in the riser, providing a longer residence time than SEFNs.
What is your industrial experience of yield and reliability, especially regarding riser radial temperature uniformity/axial temperature profile.
What is your industrial experience of yield and reliability, especially regarding riser radial temperature uniformity/axial temperature profile.
Shell has a wealth of experience with feed nozzle design in Shell, joint venture and third-party FCC units, replacing Shell and other licensors’ feed nozzles.
As shown in the presentation, Shell Max Atomisation Feed Nozzles provide excellent atomisation and distribution of feed spray for better catalyst quenching in the feed mix zone, which is indicated by a flat or relatively constant riser radial temperature profile (see below).
Over the last 20 years, we have continuously improved our feed nozzle design through our R&D programme and use in Shell FCC units (i.e., continuous improvement through operational and R&D data gathering). The Shell Max Atomisation Feed Nozzle is the culmination of all our operational and R&D experience.
What is the relationship between attrition and feed nozzle design?
What is the relationship between attrition and feed nozzle design?
Catalyst attrition or fracture can be a result of high exit velocity from the feed nozzle. Shell has guidelines for our feed nozzle design that balances low attrition with proper jet penetration (and spray coverage) in the riser.
Design
Can we use Shell's new nozzles in other licensors' FCC units?
Can we use Shell's new nozzles in other licensors' FCC units?
Absolutely. Shell has experience with replacing other licensors’ feed nozzles. In those instances, Shell typically replaces the feed cone section of the riser to include the shrouds within the riser that protect the feed nozzles (keeping feed nozzle performance sustained throughout the FCC unit full run length).
Are there any changes in differential pressure, velocity or steam rates compared to Shell’s mid-2000s side entry feed nozzles?
Are there any changes in differential pressure, velocity or steam rates compared to Shell’s mid-2000s side entry feed nozzles?
We have been able to make the performance improvements with Shell Max Atomisation Feed Nozzles using similar nozzle pressure drop and atomisation steam percentage as before.
What is the optimum steam to feed ratio for vacuum gas oil (VGO) feed?
What is the optimum steam to feed ratio for vacuum gas oil (VGO) feed?
For VGO feeds, Shell Max Atomisation Feed Nozzles typically use 1–1.5% steam.
What is the typical pressure drop across these nozzles?
What is the typical pressure drop across these nozzles?
Typical feed nozzle pressure drop for Shell Max Atomisation Feed Nozzles is between 3 and 5 bar.
Is feed vaporisation inside the nozzle due to high temperature and pressure drop accounted for during the nozzle design?
Is feed vaporisation inside the nozzle due to high temperature and pressure drop accounted for during the nozzle design?
Shell Max Atomisation Feed Nozzles are designed to minimise oil vaporisation within the feed nozzle. This is done by not mixing the steam and oil within the nozzle, but rather, using the steam to shear the oil into droplets at the nozzle tip.
Is it advisable to use different nozzles for co-processing vegetable oil?
Is it advisable to use different nozzles for co-processing vegetable oil?
We advise using separate feed nozzle(s) for any bio-oils that contain polar compounds that do not mix well with traditional fossil feedstocks.
Shell is currently working on a proprietary feed nozzle for the injection of certain pyrolysis oils that are susceptible to degradation.
In separate injection of bio-oils, is it better to inject above or below the fossil feedstock in the riser?
In separate injection of bio-oils, is it better to inject above or below the fossil feedstock in the riser?
There has been much debate about the best feed injection point for non-traditional feedstocks, and this is an area that we continue to research.
During the design stage, how do you estimate the pressure drop across the nozzle and what is the impact of feed inlet temperature on performance.
During the design stage, how do you estimate the pressure drop across the nozzle and what is the impact of feed inlet temperature on performance.
Shell has correlations for feed nozzle pressure drop that it uses during design.
Feed temperature has an impact on feed viscosity which can impact feed nozzle performance (Shell has experience designing feed nozzles for heavy, viscous residue feeds as well as lighter feeds).
Typical steam/oil ratios are around 1.5 for VGO and up to 3 for residue.
How do you design for better control of feed and steam? How do you simulate feed nozzles, and what is the relationship between margin and atomisation?
How do you design for better control of feed and steam? How do you simulate feed nozzles, and what is the relationship between margin and atomisation?
Our typical control of feed and steam to each feed nozzle is done by restriction orifice with ball valves on each feed nozzle feed line in case it is needed for trim control.
We have a feed nozzle design tool for process design of the feed nozzle, the kinetic effects are simulated in Shell’s FCC kinetic model (SHARC), and we have a feed nozzle testing unit for correlating different process parameters to feed nozzle performance.
More complete atomisation means less feed coke and less vaporisation time in the riser, which translates into higher conversion and typically higher margin.
Does the nozzle design change for higher temperatures?
Does the nozzle design change for higher temperatures?
The basic feed nozzle design does not change for higher temperatures. Shell uses 304 stainless steel for most designs (similar to regenerator internals).
What are the benefits of feed nozzle design changes, and can they be retrofitted to existing applications or are other modifications required?
What are the benefits of feed nozzle design changes, and can they be retrofitted to existing applications or are other modifications required?
The benefits of the Shell Max Atomisation Feed Nozzle outlined in the webcast include improved flexibility in operation through better and more complete atomisation leading to higher severity/conversion with better, more selective yields (i.e., more desirable yields with less feed coke and less dry gas), or higher throughput, or more regenerator capacity through lower temperatures or more air capacity, or some combination thereof.
Shell Max Atomisation Feed Nozzles can be retrofitted to any FCC unit (not just Shell units). This is most effectively done by replacing the riser cone to install the Shell feed nozzle shrouds that are sized for the new nozzles and provide high feed nozzle reliability.
What related instruments are needed and what is their designation?
What related instruments are needed and what is their designation?
Shell typically has a control valve on the main feed line and the main steam line to the respective ring headers. Individual feed and steam flow control to each feed nozzle is done through restriction orifices.
Shell also has a pressure indicator on the feed and steam ring header, and individual ones on the feed lines to each feed nozzle. This allows the operator to see if there are erosion or plugging issues with an individual feed nozzle.
How would we know if the nozzle is partially blocked and not spraying as required?
How would we know if the nozzle is partially blocked and not spraying as required?
Shell’s feed nozzle designs provide local pressure indicators on each feed line to the individual feed nozzles. Plugging or erosion can be seen by differences in pressure in these pressure indicators.
How does the unit turndown impact feed nozzle design?
How does the unit turndown impact feed nozzle design?
Shell Max Atomisation Feed Nozzles are designed for full flow and turndown flow. Typical turndown is 50–60%.
Products and yields
Are there any indicative shifts in gasoline and LPG properties (iC4, C3 and C4 olefins) due to Shell’s new feed nozzles?
Are there any indicative shifts in gasoline and LPG properties (iC4, C3 and C4 olefins) due to Shell’s new feed nozzles?
Shell Max Atomisation Feed Nozzles improve the feed's ability to undergo catalytic reactions in the riser by making sure as much of the feed as possible can be cracked to gasoline and lighter products. This means that the feed is atomised as fully as possible so that coke production is mainly limited to coke precursors in the feed and the catalytic reaction itself instead of unvaporised feed.
As a result, the Shell Max Atomisation Feed Nozzles increase conversion by allowing more of the feed to be accessed by the catalyst for conversion. This increased access and conversion may have a knock-on effect to the product properties, but such property shifts are due to the catalyst itself.
Do you design feed nozzles for max propylene units?
Do you design feed nozzles for max propylene units?
For max propylene, it is important to have a feed nozzle that maximises the atomisation of the liquid as completely as possible to reduce feed coke for maximum severity and conversion – and that is what the Shell Max Atomisation Feed Nozzle does.
How can the new nozzles increase LPG yield?
How can the new nozzles increase LPG yield?
Shell Max Atomisation Feed Nozzles more completely atomise feeds, reducing feed coke and dry gas, enabling the FCC unit to go to high severity and conversion, which is needed for max LPG.
Shell Max Atomisation Feed Nozzles more completely atomise feeds, reducing feed coke and dry gas, enabling the FCC unit to go to high severity and conversion, which is needed for max LPG.
Shell Max Atomisation Feed Nozzles more completely atomise feeds, reducing feed coke and dry gas, enabling the FCC unit to go to high severity and conversion, which is needed for max LPG.
The typical way to monitor feed nozzle yield performance is through periodic mass balances to determine the yields and conversion. To track this frequently throughout the FCC unit run, the data is normalised in a kinetic model, to understand the feed nozzle performance and determine if there are any issues with the feed nozzles such as erosion (via a reduction in conversion or a shift in yields).
Poor feed atomisation or improper feed nozzle design via spray impingement on the riser wall can lead to riser coking. Monitoring riser pressure drop will provide insight into whether coke growth is occurring in the riser.
Coking in the reactor/disengager vessel is a different issue and can be harder to identify during the run, although some people have used temperature indicators in the reactor to track coke buildup in the vessel.
How does nozzle design impact coke and gas yield?
How does nozzle design impact coke and gas yield?
Shell Max Atomisation Feed Nozzles improve atomisation in terms of droplet size and through more complete atomisation of the liquid. As a result, less feed goes to coke, allowing more coke to be made via conversion (i.e., higher catalyst circulation and severity).
Please indicate delta yield shifts for the new nozzle design versus current designs.
Please indicate delta yield shifts for the new nozzle design versus current designs.
For easier-to-process feeds such as VGO, a conversion improvement of around 0.5 wt% can be expected, as shown in the audited yield shift* results below (from Puget Sound refinery in the USA), which were discussed in the webcast.
- Dry gas: (0.3) wt%
- Propylene/propane (PP): 0.2 wt%
- Butane/butylene (BB): 0.4 wt%
- Gasoline: (0.4) wt%
- Light cycle oil (LCO): (1.0) wt%
- Slurry oil: 0.1 wt%
- Conversion: 0.6 wt%
*Audited at constant coke yield
For harder to process feeds such as residue there can be even more significant conversion improvement of 2 wt% or more. Again, this is demonstrated in the audited yield shift* results below (from Shell Energy and Chemicals Park Singapore), which were discussed in the webcast.:
- Dry gas: (0.4) wt%
- PP (0.1) wt%
- BB (0.5) wt%
- Gasoline: 3.7 wt%
- LCO: (0.9) wt%
- Slurry oil: (1.8) wt%
- Conversion: 2.7 wt%
*Audited at constant coke yield
Performance
What is the maximum feed nozzle size offered for what capacity? Can they be customised for a riser?
What is the maximum feed nozzle size offered for what capacity? Can they be customised for a riser?
Typical nozzle sizes are 6 or 8 in. NPS (nominal pipe size), but we have produced other sizes for customers.
Shell has a range for feed rate per nozzle that is used as a guideline to ensure that you get good feed distribution and penetration into the riser without too high a pressure drop. We prefer to use an even number of nozzles to maintain good distribution. All these factors go into nozzle sizing.
Can droplets be too small, such that penetration into a large riser suffers?
Can droplets be too small, such that penetration into a large riser suffers?
This is not typically a concern. The goal is to produce feed droplets of a similar size or order of magnitude to the catalyst.
Do you have any data on expected temperature profiles across riser length?
Do you have any data on expected temperature profiles across riser length?
The data on temperature profile shifts due to Shell Max Atomisation Feed Nozzles was shared in the presentation.
Examples include Shell Energy and Chemicals Park Singapore’s (formerly Pulau Bukom refinery) drop in riser temperature profile by 15°C while increasing conversion by almost 3 wt%; also, Puget Sound refinery’s drop in regenerator bed temperature by 22°C while increasing conversion 0.6 wt%.
What is the average droplet size on atomisation?
What is the average droplet size on atomisation?
There is a range of droplet sizes produced that is in the same order of magnitude as catalyst particles (somewhere around a few hundred microns is typical).
For nozzles that do not atomise well, liquid globules and strands are much larger (size of these globules and strands is in the order of millimeters).
Having been active in sulphur recovery for about 50 years, Shell has built up extensive expertise in this area. We have developed our own dedicated software design tool that incorporates extensive commercial plant and research data to ensure very accurate performance predictions.
We can support our customers in the catalyst decision-making process. We can advise which of our tail gas catalysts will best fit their situation for maximising performance and catalyst cycle life.
Is droplets size distribution the main issue affecting feed nozzle performance? How do the phases interact inside the nozzle?
Is droplets size distribution the main issue affecting feed nozzle performance? How do the phases interact inside the nozzle?
The main issue is actually the unatomised parts of the liquid feed. These go directly to coke, which limits conversion and regenerator capacity.
Shell uses the momentum force of steam at the nozzle head exit to shear the liquid into tiny droplets, so there is no substantial mixing of hydrocarbon and steam in the nozzle body.
How can we get higher margins with low cost FCC unit improvements?
How can we get higher margins with low cost FCC unit improvements?
In general, feed nozzles are one of the hardware items that can give you the biggest return on investment in terms of margin as they have an impact on both reactor and regenerator operation, as well as yield performance.
The webcast demonstrated that Shell Max Atomisation Feed Nozzles provide the right mix of higher performance and reliability to dramatically improve conversion and yield performance, and can have a payback of less than 1 year, making them budget friendly.
Is there any way to quantify a feed nozzle's performance, if so how do we do it?
Is there any way to quantify a feed nozzle's performance, if so how do we do it?
Feed nozzle performance is usually tracked by periodic mass balances and calculation of yields.
How do you model the impact of thermal and catalytic cracking and what causes increased dry gases in the case of poor feed dispersion?
How do you model the impact of thermal and catalytic cracking and what causes increased dry gases in the case of poor feed dispersion?
We use the Shell proprietary FCC kinetic model SHARC to model performance including thermal and catalytic cracking reactions.
Dry gas is caused through thermal reactions due to high catalyst temperature in the feed mix zone. Shell Max Atomisation Feed Nozzles provide better catalyst quenching to reduce mix zone temperature and dry gas.
Reliability
What is the typical life of these feed nozzles?
What is the typical life of these feed nozzles?
As mentioned in the webcast, Shell Max Atomisation Feed Nozzles provide high performance over the entire cycle of the FCC, whether that be 5 years or more. This reliability is achieved using a protective shroud that is designed to house the feed nozzles in the riser (see below).
After a single cycle, we recommend replacing the nozzles to mitigate the possibility of an erosion issue happening in the middle of the second cycle; however, we have customers who have had second runs with the same feed nozzles without issue.
Can the nozzles be repaired/renovated at local shops?
Can the nozzles be repaired/renovated at local shops?
Shell Max Atomisation Feed Nozzles cannot be sent to a local shop for repairs as they are proprietary nozzles with proprietary internals that must be fabricated in a Shell approved fabrication shop.
What are the possible causes of hot spots and erosion of nozzles?
What are the possible causes of hot spots and erosion of nozzles?
Shell Max Atomisation Feed Nozzles have a protective shroud to prevent damage due to erosion. The feed nozzle slot is sized to see the full spray to prevent zones with no spray that can create low pressure eddies resulting in catalyst ingress and erosion.
The shroud slot is also sized to allow the feed nozzle spray to pass through while occupying the full shroud slot area, helping to prevent catalyst from entering the shroud and getting to the feed nozzle.
How have you addressed nozzle plugging challenges during processing or co-processing of unconventional feedstocks, such as pyrolysis oils?
How have you addressed nozzle plugging challenges during processing or co-processing of unconventional feedstocks, such as pyrolysis oils?
Shell has experience in mixing recycled plastic pyrolysis oil with typical hydrocarbon feeds and putting that through Shell Max Atomisation Feed Nozzles without plugging issues.
Other types of pyrolysis feeds, like bio-oil from biomass, can degrade and plug at relatively low feed temperatures. To handle bio-oils, Shell has developed a separate bio-oil feed nozzle that we will be trialling at a Shell FCC unit this year. Once tested and patented, our bio-oil feed nozzle will be available to license to customers.
What is the service life of these “step-change” feed nozzles?
What is the service life of these “step-change” feed nozzles?
Shell Max Atomisation Feed Nozzles have consistent performance in terms of conversion and yields over the entire FCC unit cycle (4–6 years). Some customers have completed a second cycle with these feed nozzles with minimal impact on yield performance.
In Shell, we change our feed nozzles during every turnaround because it does not take much degradation in yields to justify new nozzles given FCC unit margins.
How reliable are the new feed nozzles?
How reliable are the new feed nozzles?
Shell Max Atomisation Feed Nozzles are highly reliable, with little to no drop in conversion or yields through the entire FCC unit cycle. This is due in part to the feed nozzle design itself (full coverage slot design for prevention of catalyst ingress) as well as the design of the protective shroud.
How prone are the nozzles to plugging and thereby creating an uneven heat distribution?
How prone are the nozzles to plugging and thereby creating an uneven heat distribution?
Shell Max Atomisation Feed Nozzles are designed to prevent catalyst ingress (which can lead to plugging or erosion) via the steam head and oil slot design (98–99+% slot coverage).
Also, Shell Max Atomisation Feed Nozzles use emergency steam to the feed nozzle if there is an upset and loss of feed to keep the feed nozzle clear of catalyst.
Uses and feeds
How does feed quality (in terms of CCR, metals, etc.) have an effect on feed nozzle performance?
How does feed quality (in terms of CCR, metals, etc.) have an effect on feed nozzle performance?
Feed quality can have a dramatic effect on feed nozzle performance. The heavier the feed (as would be the case with higher CCR and metals feeds), the harder it is to atomise the feed into sufficiently small droplets. Since aromatics don't crack in the FCC, and heavier feeds typically have higher quantities of aromatics, the already difficult to crack feed is made worse by lack of proper atomisation.
In other words, more of the crackable hydrocarbons are not sufficiently atomised and turn into coke (not vaporised within the riser) and add onto the coke pre-cursors in the feed (CCR and poly ring aromatics) to make more coke, and less naphtha and lighter products.
Shell Max Atomisation feed nozzles are designed to maximise the atomisation of more difficult, heavy feeds which allows a higher proportion of crackable heavy components to convert to more valuable products.
What other applications of this feed nozzle technology are envisioned?
What other applications of this feed nozzle technology are envisioned?
Shell Max Atomisation Feed Nozzles can be used for many different types of feeds from VGO to residue to deasphalted oil (DAO) and hydrowax. They can also be used for naphtha recycle, depending on the desired injection location and quantity of naphtha.
How does your feed nozzle handle incompatibilities between feeds (i.e., paraffinic feed and aromatic bottoms recycle)?
How does your feed nozzle handle incompatibilities between feeds (i.e., paraffinic feed and aromatic bottoms recycle)?
Shell Max Atomisation Feed Nozzles can be designed to handle a wide variety of feeds, from naphtha recycle to VGO to heavy residues and more. If there are feeds that are truly incompatible when mixed in a feed tank (i.e., separate into different liquid phases or precipitate), we would most likely design a separate feed system for those feeds.
What consideration is needed for heavy aromatics?
What consideration is needed for heavy aromatics?
For heavy, viscous feeds, we would typically try to increase feed temperature (within reason) and likely use slightly higher steam (~3% for heaviest hydrocarbon feeds).
Can the nozzles be used for light naphtha?
Can the nozzles be used for light naphtha?
Yes, the Shell Max Atomisation Feed Nozzle can be used to feed light naphtha to the riser.
What is the maximum and minimum feed range and the proper pressure drop?
What is the maximum and minimum feed range and the proper pressure drop?
Shell accommodates different feed rates for different FCC units through the number of feed nozzles provided and, to a lesser extent, by the size of the feed nozzles. We design our feed nozzles for the full range of flowrates from design to turndown. In our experience, pressure drop for feed nozzles ranges from 2.5–5.5 bar.
What is the nozzle’s ability to handle higher viscosity feed?
What is the nozzle’s ability to handle higher viscosity feed?
Shell has feed nozzle design experience with heavy residue feeds with high viscosity. Higher viscosity feeds are usually handled through a combination of higher feed temperature and a slight increase in atomisation steam (up to 3%).
Would recycling naphtha to FCC reactor require a separate set of injection nozzles?
Would recycling naphtha to FCC reactor require a separate set of injection nozzles?
This depends on the quantity of naphtha that is to be recycled, temperature of the feed to the feed nozzle and the preferred location for naphtha injection. It is possible to recycle naphtha to the riser through the normal feed nozzles if the recycle rate is low and the temperature is conducive (to limit naphtha vaporisation).
Meet your fcc team
Todd leads the licensing efforts for Shell’s FCC technology to third-party customers and is part of a team that provides the process design on FCC projects to both Shell and third-party clients.
Todd has BS and MS degrees in chemical engineering along with about 30 years of experience in the hydrocarbon processing industry that includes process design, site support and operations.
Robert leads a team providing technical advice, assurance and design to advance the process technologies and operations at Shell wholly-owned, joint venture and third-party-licensee sites.
He has BS and MS degrees in chemical engineering and is a registered Professional Engineer with 44 years of refining experience including 37 years specialising in FCC.

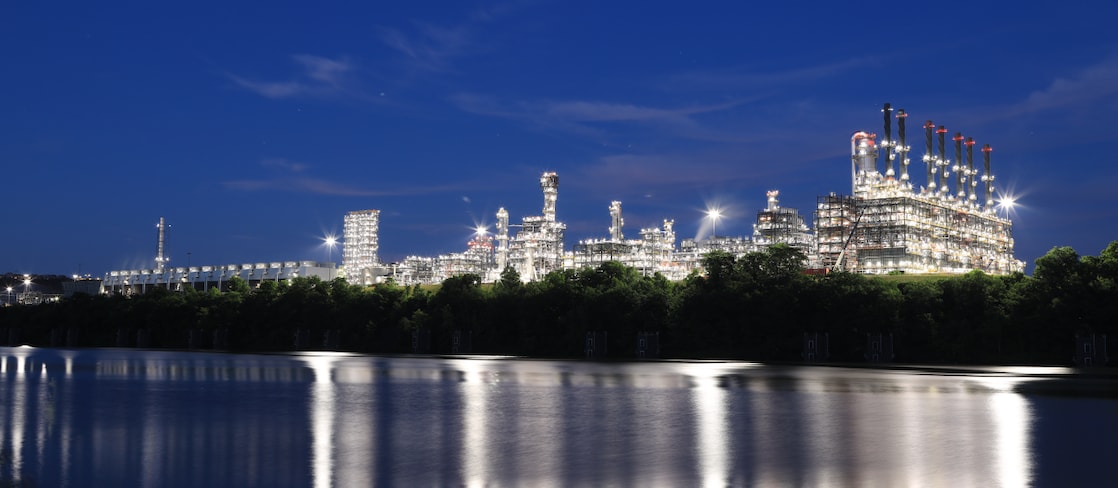

Download the Shell Feed Nozzle Technology White Paper
Gain more insights from our white paper, in which we detail:
- The benefits of improved feed atomisation
- Unloading the wet gas compressor and air blower
- Audited results of new Shell feed nozzle installations
- FCC pretreatment/FCC optimisation scenario
